Adapter Tube
Box-Box Adapter Tube
| Part Number | Adapter Tube Model | SizeA(mm) | SizeB(mm) | SizeC(mm) | Wrench FlatD(mm) |
| 66530011 | 2 3/8Box-2 3/8Box Adapter Tube | 97 | 45 | ₵89 | 70 |
| 66530012 | 2 3/8Box-2 7/8Box Adapter Tube | 115 | 50 | ₵102 | 85 |
| 66530013 | 2 3/8IF Box-3 1/2Box Adapter Tube | 102 | 50 | ₵114 | 95 |
| 66530014 | 2 7/8Box-3 1/2Box Adapter Tube | 122 | 50 | ₵114 | 95 |
Pin-Box Adapter Tube
| Part Number | Adapter Tube Model | SizeA(mm) | SizeB(mm) | SizeC(mm) | Wrench Flat(mm) |
| 66530001 | 2 3/8Pin-2 3/8Box Adapter Tube | 25 | 45 | ₵78 | 57 |
| 66530002 | 2 3/8IF Pin-2 3/8Box Adapter Tube | 25 | 45 | ₵89 | 70 |
| 66530003 | 2 3/8IF Pin-2 3/8IF Box Adapter Tube | 25 | 45 | ₵89 | 70 |
| 66530004 | 2 3/8Pin-2 7/8Box Adapter Tube | 25 | 45 | ₵102 | 70 |
| 66530005 | 2 7/8IF Pin-2 7/8IF Box Adapter Tube | 25 | 45 | ₵108 | 85 |
| 66530006 | 3 1/2Pin-3 1/2Box Adapter Tube | 25 | 50 | ₵114 | 95 |

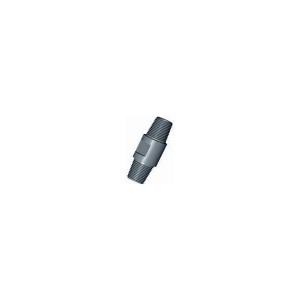

Pin-Pin Adapter Tube
| Part Number | Adapter Tube Model | SizeA(mm) | SizeB(mm) | SizeC(mm) | Wrench Flat(mm) |
| 66530007 | 2 3/8Pin-2 3/8Pin Adapter Tube | 21 | 45 | ₵89 | 70 |
| 66530008 | 3 1/2Pin-3 1/2Pin Adapter Tube | 23 | 50 | ₵114 | 95 |
| 66530009 | 3 1/2Pin-4 1/2Pin Adapter Tube | 30 | 50 | ₵140 | 102 |
| 66530010 | 4 1/2Pin-4 1/2Pin Adapter Tube | 30 | 50 | ₵140 | 102 |
