Box type diesel screw air compressor
Application
| Model | F.A.D | Rated Pressure | Power | Diesel Tank | Air End | Weight | Dimension(L*W*H) |
| S60T | 18m³/min | 18 bar | Yuchai 162kW | 230L | Two stage compression | 3,050kg | 3,220×1,670
×2,150 mm |

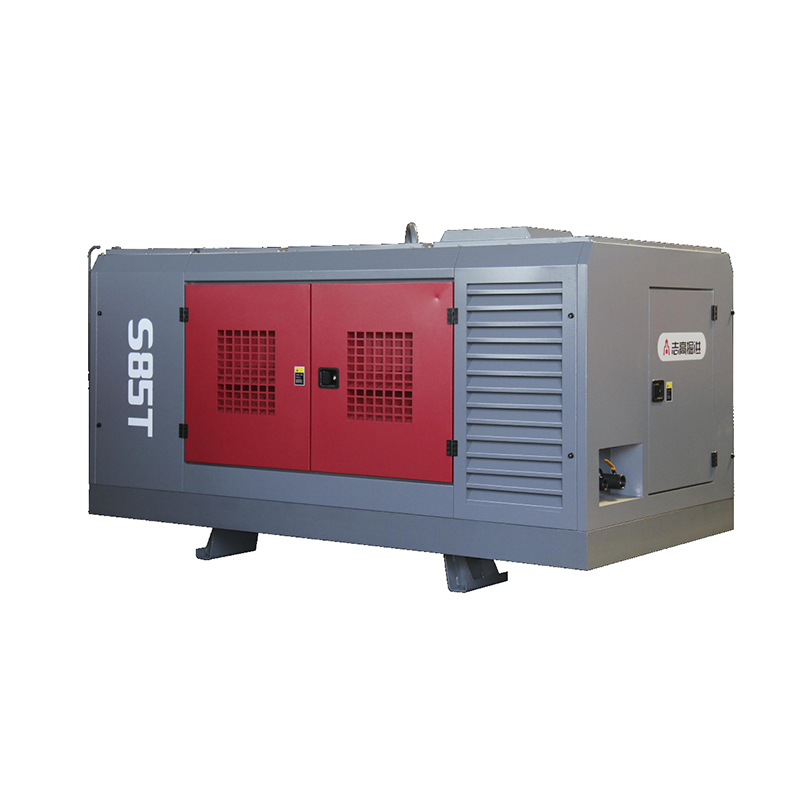

| S85T | 24m³/min | 22 bar | Yuchai 228kW | 350L | 3,450kg | 3,560×1,830
×2,100 mm |
|
| S95T | 29m³/min | 24bar | Yuchai 295kW | 415L | 4,300kg | 3,950×2,000
×2,550 mm |
|

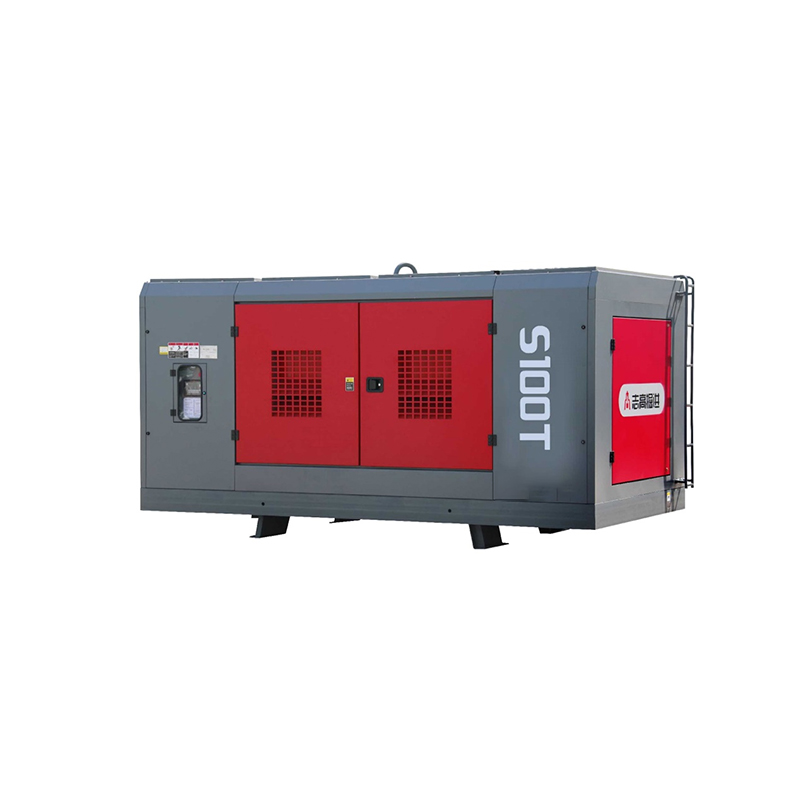

| S100T | 31m³/min | 25bar | Xichai 309kW | 415L | 4,550kg | 3,950×2,000
×2,550 mm |
|
| S125D | 36m³/min | 30bar | Cummins 410kW | 600L | 5,500kg | 4,220×2,000
×2,300 mm |
Related products
-
electric piston air compressor
Application Model F.A.D (m³∕min) Pressure (Mpa) RPM (r/min) Power (kW) Piston displacement (mm) Tank (L) Drive way Dimension L*W*H（mm） Weight (kg) HW10007 1.05 0.7 850 7.5 72 320 V-belt 1690*530*1260 335 HW10012 0.8 1.25 950 7.5 72 320 1690*530*1260 335 HW15007 1.5 0.7 830 11 80 320 1740*590*1350 487 HW15012 1.2 1.25 850 11 80 ...
-
diesel piston air compressor
Application Model Air Pressure (bar) F.A.D (m³/min) Air Tank (L) Diesel Engine Dimension (mm) Weight(kg) L W H W1.8/5 5 1.8 130 S1100 1630*750*1150 299 W2.85/5 2.85 200 S1110 1750*940*1290 400 W3.0/5 3 200 S1115 1750*940*1290 405 W3.5/5 3.5 200 S1125 1750*940*1290 410 W3108 8 2 130 S1105 1630*760*1150 320 W3118 3 200 S1115 1750*940*1290 435 W3128 3.5 230 S1125 1800*940*1290 450
-
Diesel portable air compressor S125D
Compressor technical specifications 1 Model S125D+ 2 Descriptions Diesel engine driven screw air compressor 3 Rated F.A.D m³/min 36 4 Rated working pressure bar 30 5 Oil content PPM £3 6 Discharge air temperature ℃ 100℃ 7 Compressor oil capacity L 100 8 Air Storage tank capacity L 160 9 Compression stage 级 2 10 Transmission type Coupling direct dri...
-
Stationary electric screw air compressor
Application Model F.A.D Rated Pressure Motor Power Air End Motor Protection Class Weight 45SCF+ -8B 7.5 m3 /min 8 bar 45kW Single Stage Compression IP55 920 kg 55SCF+ -8B 9.8 m³/min 8 bar 55 kW 1,040 kg 75SCF+ -8B 13.2 m³/min 8 bar 75 kW 1,585 kg 90SCF+ -8B 15.5 m³/min 8 bar 90 kW 1,695 kg 110SCF+ -8B 20 m³/min 8 bar 110 kW 1,955 kg 132SCF+ -8B 24 m³/min 8 bar 132 kW 2,065 kg 90SCFT+ -8A 20 m³/min 8 bar 90 kW T...
-
Diesel air compressor 141SCY-14.5B
Compressor technical specifications 1 Model 141SCY+-15B 2 Descriptions Diesel engine driven portable screw air compressor 3 Rated F.A.D m³/min 15 4 Rated working pressure bar 15 5 Oil content PPM £5 6 Discharge air temperature ℃ 80℃ 7 Compressor oil capacity L 48 8 Air Storage tank capacity L 75 9 Compression stage 级 1 10 Transmission type Co...
-
Small compact portable screw air compressors
Application Model Rated F.A.D Rated pressure Engine power Compression Weight Dimension 40SCY 4.5m³/min 7 bar Xichai 4DW91-50GBG3U / 36.8 kW Single 860 kg 2,400×1,330×1,550 mm 60SCY 9m³/min 7 bar Xichai 4DW93-80 / 59 kW Single 1,280 kg 2,700×1,600×1,700 mm 110SCY-10 12.5m³/min 10 bar Yuchai YC4A160 / 118 kW Single 2,350 kg 3,000×1,610×2,350 mm
