CIR Bits

Short Description:


Product Detail

Product Tags

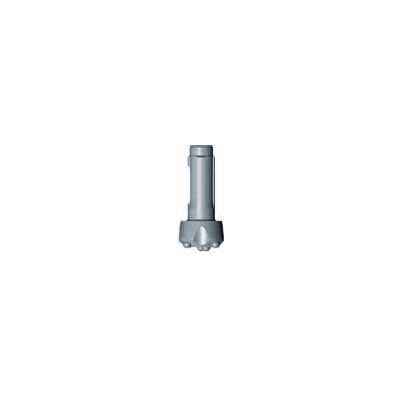

CIR65

Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg)
Guage  No. X Size Center No. X Size
66520075 Flat Face 65 4x12 2x12 2 1.50
66520076 Flat Face 68 4x12 2x12 2 1.60
CIR65

CIR70

Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg)
Guage  No. X Size Center No. X Size
66520077 Flat Face 76 6x12 4x11 2 2.00
66520078 Convex Face 85 6x13 2x12+2x11 2 2.30
CIR70

CIR90

Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg)
Guage  No. X Size Center No. X Size
66520079 Convex Face 90 6x14 2x13+2x12 2 3.75
66520080 Concave Face 110 6x14 6x13 2 4.80
CIR90

CIR110

Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg)
Guage  No. X Size Center No. X Size
66520081 Concave Face 110 6x14 6x13 2 6.20
66520082 Concave Face 130 8x14 4x14+3x13 2 8.05
66520083 Flat Face 140 8x14 8x14 2 9.00
CIR110

CIR170

Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg)
Guage  No. X Size Center No. X Size
66520084 Convex Face 155 9x16 10x14 2 16.70
66520085 Convex Face 165 9x16 10x14 2 17.55
66520086 Convex Face 178 9x16 6x16+6x14 2 18.85
CIR170
