DHD3.5

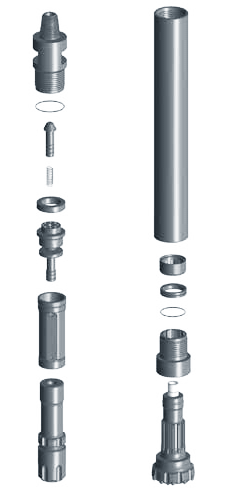

No. Descprition Part Number Weight(kg)
1 Top Sub 66510014 4.4
2 "O"Ring 66510015 0.01
3 Check Valve 66510016 0.2
4 Spring 66510017 0.02
5 Rubber Buffer 66510018 0.02
6 Valve Seat 66510019 1.4
7 Inner Cylinder 66510020 1.7
8 Piston 66510021 5.6
9 Piston Case 66510022 9.5
10 Retainer Ring 66510023 0.1
11 "O"Ring 66510024 0.01
12 Drive Chuck 66510025 2.3
13 Drill Bit 66510026

Technical Data

1 Length(Less bit) 928mm
2 Weight 25Kg
3 Outer Diameter ￠82mm
4 Connection Thread API2 3/8"REG
5 Bit Shank DHD3.5
6 Hole Range ￠90- ￠110mm
7 Working Pressure 1.0- 1.7 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 4.5m³/min
1.5Mpa 8.5m³/min
DHD3.5

DHD3.5A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510001 4.5
2 "O"Ring 66510002 0.01
3 Check Valve 66510003 0.13
4 Spring 66510004 0.02
5 Valve Seat 66510005 0.76
6 Inner Cylinder 66510006 1.45
7 Piston 66510007 4.8
8 Piston Case 66510008 9.5
9 Guided Sleeve 66510009 0.9
10 Retainer Ring 66510010 0.15
11 "O"Ring 66510011 0.01
12 Drive Chuck 66510012 1.9
13 Drill Bit 66510013

Technical Data

1 Length(Less bit) 886mm
2 Weight 24.2Kg
3 Outer Diameter ￠82mm
4 Connection Thread API2 3/8"REG
5 Bit Shank DHD3.5A
6 Hole Range ￠90- ￠115mm
7 Working Pressure 1.0- 1.7 Mpa
8 Recommended Rotation Speed 30～50 r/min
9 Air Consumption 1.0Mpa 4m³/min
1.5Mpa 6.5m³/min
DHD3.5A

DHD340

No. Descprition Part Number Weight(kg)
1 Top Sub 66510040 8.8
2 "O"Ring 66510041 0.01
3 Check Valve 66510042 0.46
4 Spring 66510043 0.04
5 Rubber Buffer 66510044 0.2
6 Valve Seat 66510045 2.1
7 Inner Cylinder 66510046 2.45
8 Piston 66510047 9
9 Piston Case 66510048 15.9
10 Retainer Ring 66510049 0.2
11 "O"Ring 66510050 0.01
12 Drive Chuck 66510051 3.7
13 Drill Bit 66510052

Technical Data

1 Length(Less bit) 1032mm
2 Weight 43Kg
3 Outer Diameter ￠99mm
4 Connection Thread API2 3/8"REG
5 Bit Shank DHD340
6 Hole Range ￠110- ￠135mm
7 Working Pressure 1.0-2.2 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 5.5m³/min
1.8Mpa 10m³/min
DHD340

DHD340

No. Descprition Part Number Weight(kg)
1 Top Sub 66510040 8.8
2 "O"Ring 66510041 0.01
3 Check Valve 66510042 0.46
4 Spring 66510043 0.04
5 Rubber Buffer 66510044 0.2
6 Valve Seat 66510045 2.1
7 Inner Cylinder 66510046 2.45
8 Piston 66510047 9
9 Piston Case 66510048 15.9
10 Retainer Ring 66510049 0.2
11 "O"Ring 66510050 0.01
12 Drive Chuck 66510051 3.7
13 Drill Bit 66510052

Technical Data

1 Length(Less bit) 1032mm
2 Weight 43Kg
3 Outer Diameter ￠99mm
4 Connection Thread API2 3/8"REG
5 Bit Shank DHD340
6 Hole Range ￠110- ￠135mm
7 Working Pressure 1.0-2.2 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 5.5m³/min
1.8Mpa 10m³/min
DHD340

DHD340A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510027 8.1
2 "O"Ring 66510028 0.01
3 Check Valve 66510029 0.3
4 Spring 66510030 0.04
5 Valve Seat 66510031 1.5
6 Inner Cylinder 66510032 2.1
7 Piston 66510033 8.4
8 Piston Case 66510034 15
9 Guided Sleeve 66510035 1
10 Retainer Ring 66510036 0.2
11 "O"Ring 66510037 0.01
12 Drive Chuck 66510038 3.6
13 Drill Bit 66510039

Technical Data

1 Length(Less bit) 986mm
2 Weight 40.5Kg
3 Outer Diameter ￠99mm
4 Connection Thread API2 3/8"REG
5 Bit Shank DHD340A
6 Hole Range ￠110- ￠135mm
7 Working Pressure 1.0-2.2 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 5m³/min
1.8Mpa 9m³/min
10m³/min
DHD340A

DHD350

No. Descprition Part Number Weight(kg)
1 Top Sub 66510066 14.7
2 "O"Ring 66510067 0.02
3 Check Valve 66510068 1
4 Spring 66510069 0.06
5 Regulate Ring 66510070 0.1
6 Rubber Buffer 66510071 0.06
7 Pedestal 66510072 0.2
8 Valve Seat 66510073 4.2
9 Inner Cylinder 66510074 4.9
10 Piston 66510075 15.5
11 Piston Case 66510076 30.3
12 Retainer Ring 66510077 0.3
13 "O"Ring 66510078 0.01
14 Drive Chuck 66510079 7.1
15 Drill Bit 66510080

Technical Data

1 Length(Less bit) 1209mm
2 Weight 78.5Kg
3 Outer Diameter ￠125mm
4 Connection Thread API2 3/8"REG
5 Bit Shank DHD350
6 Hole Range ￠135- ￠155mm
7 Working Pressure 1.0-2.5 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 9m³/min
1.8Mpa 15m³/min
DHD350

DHD350A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510053 14
2 "O"Ring 66510054 0.01
3 Check Valve 66510055 0.6
4 Spring 66510056 0.06
5 Valve Seat 66510057 2.15
6 Inner Cylinder 66510058 3.3
7 Piston 66510059 15.5
8 Piston Case 66510060 24.2
9 Guided Sleeve 66510061 2.64
10 Retainer Ring 66510062 0.5
11 "O"Ring 66510063 0.01
12 Drive Chuck 66510064 7
13 Drill Bit 66510065

Technical Data

1 Length(Less bit) 1122mm
2 Weight 70Kg
3 Outer Diameter ￠126mm
4 Connection Thread API2 3/8"REG
5 Bit Shank DHD350A
6 Hole Range ￠136- ￠155mm
7 Working Pressure 1.0-2.5 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 7m³/min
1.5Mpa 13m³/min
DHD350A

DHD360

No. Descprition Part Number Weight(kg)
1 Top Sub 66510096 20.3
2 "O"Ring 66510097 0.02
3  Check Valve 66510098 0.8
4 Spring 66510099 0.05
5 Rubber Buffer 66510100 0.3
6 Valve Seat 66510101 5
7 Inner Cylinder 66510102 4
8 Piston 66510103 23.5
9 Piston Case 66510104 37.2
10 Guided Sleeve 66510105 2.5
11 卡环 Retainer Ring 66510106 0.6
12 "O"Ring 66510107 0.02
13 Drive Chuck 66510108 6
14 Drill Bit 66510109

Technical Data

1 Length(Less bit) 1063mm
2 Weight 100.5Kg
3 Outer Diameter ￠142mm
4 Connection Thread API 3 1/2"REG
5 Bit Shank DHD360
6 Hole Range ￠150- ￠190mm
7 Working Pressure 1.0-2.5 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 20m³/min
1.8Mpa 28m³/min
DHD360

DHD360A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510081 21.5
2 "O"Ring 66510082 0.01
3 Disc Spring 66510083 0.34
4 Check Valve 66510084 0.56
5 Spring 66510085 0.05
6 Valve Seat 66510086 4.3
7 Inner Cylinder 66510087 4.2
8 Piston 66510088 23
9 外缸 Piston Case 66510089 36.5
10 衬套 Guided Sleeve 66510090 6.3
11 挡圈 Check Ring 66510091 0.02
12 卡环 Retainer Ring 66510092 1
13 O形圈 "O"Ring 66510093 0.01
14 卡钎套 Drive Chuck 66510094 8.2
15 钻头 Drill Bit 66510095

Technical Data

1 Length(Less bit) 1220mm
2 Weight 106Kg
3 Outer Diameter ￠148mm
4 Connection Thread API 3 1/2"REG
5 Bit Shank DHD360A
6 Hole Range ￠158- ￠203mm
7 Working Pressure 1.2-2.5 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.8Mpa 16m³/min
2.4Mpa 23m³/min
DHD360A

DHD380

No. Descprition Part Number Weight(kg)
1 Top Sub 66510123 42
2 Adjuster Shim 66510124 0.2
3 "O"Ring 66510125 0.02
4 Check Valve 66510126 1.3
5 Spring 66510127 0.09
6 Rubber Buffer 66510128 0.4
7 Valve Seat 66510129 13
8 Inner Cylinder 66510130 9.1
9 Piston 66510131 41.5
10 Piston Case 66510132 62.5
11 Retainer Ring 66510133 1.2
12 "O"Ring 66510134 0.02
13 Adjuster Shim 66510135 0.2
14 Drive Chuck 66510136 18.2
15 Drill Bit 66510137

Technical Data

1 Length(Less bit) 1492mm
2 Weight 190Kg
3 Outer Diameter ￠180mm
4 Connection Thread API 4 1/2"REG
5 Bit Shank DHD380
6 Hole Range ￠195- ￠254mm
7 Working Pressure 1.5-3.3 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.8Mpa 26m³/min
2.4Mpa 34m³/min
DHD380

DHD380A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510110 38.5
2 "O"Ring 66510111 0.02
3 Check Valve 66510112 0.65
4 Spring 66510113 0.1
5 Valve Seat 66510114 6.2
6 Inner Cylinder 66510115 7.4
7 Piston 66510116 44.5
8 Piston Case 66510117 69.5
9 Guided Sleeve 66510118 6.1
10 Retainer Ring 66510119 1.2
11 "O"Ring 66510120 0.01
12 Drive Chuck 66510121 19.3
13 Drill Bit 66510122

Technical Data

1 Length(Less bit) 1354mm
2 Weight 193Kg
3 Outer Diameter ￠185mm
4 Connection Thread API 4 1/2"REG
5 Bit Shank DHD380A
6 Hole Range ￠198- ￠254mm
7 Working Pressure 1.5-3.3 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.8Mpa 25m³/min
2.4Mpa 34m³/min
DHD380A

M30

No. Descprition Part Number Weight(kg)
1 Top Sub 66510250 4.5
2 "O"Ring 66510251 0.01
3 Check Valve 66510252 0.13
4 Spring 66510253 0.02
5 Valve Seat 66510254 0.76
6 Inner Cylinder 66510255 1.45
7 Piston 66510256 4.8
8 Piston Case 66510257 7.6
9 Guided Sleeve 66510258 0.9
10 Retainer Ring 66510259 0.2
11 "O"Ring 66510260 0.01
12 Drive Chuck 66510261 2.5
13 Drill Bit 66510262

Technical Data

1 Length(Less bit) 931mm
2 Weight 23Kg
3 Outer Diameter ￠82mm
4 Connection Thread API 2 3/8"REG
5 Bit Shank M30
6 Hole Range ￠90- ￠115mm
7 Working Pressure 1.0- 1.7 Mpa
8 Recommended Rotation Speed 30～50 r/min
9 Air Consumption 1.0Mpa 4m³/min
1.5Mpa 6.5m³/min
M30

M40

No. Descprition Part Number Weight(kg)
1 Top Sub 66510263 8.1
2 "O"Ring 66510264 0.01
3 Check Valve 66510265 0.3
4 Spring 66510266 0.04
5 Valve Seat 66510267 1.5
6 Inner Cylinder 66510268 2.1
7 Piston 66510269 4.8
8 Piston Case 66510270 15
9 Guided Sleeve 66510271 1.84
10 Retainer Ring 66510272 0.3
11 "O"Ring 66510273 0.01
12 Drive Chuck 66510274 3.9
13 Drill Bit 66510275

Technical Data

1 Length(Less bit) 1004mm
2 Weight 40.5Kg
3 Outer Diameter ￠99mm
4 Connection Thread API 2 3/8"REG
5 Bit Shank M40
6 Hole Range ￠110- ￠135mm
7 Working Pressure 1.0-2.2 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption   5m³/min
  9m³/min
M40

M50

No. Descprition Part Number Weight(kg)
1 Top Sub 66510276 13.7
2 "O"Ring 66510277 0.02
3 Check Valve 66510278 0.7
4 Spring 66510279 0.1
5 Valve Seat 66510280 2
6 Inner Cylinder 66510281 2.8
7 Piston 66510282 15
8 Piston Case 66510283 24
9 Guided Sleeve 66510284 2.6
10 Retainer Ring 66510285 0.7
11 "O"Ring 66510286 0.01
12 Drive Chuck 66510287 7.1
13 Drill Bit 66510288

Technical Data

1 Length(Less bit) 1122mm
2 Weight 70.5Kg
3 Outer Diameter ￠126mm
4 Connection Thread API 2 3/8"REG
5 Bit Shank M50
6 Hole Range ￠136- ￠155mm
7 Working Pressure 1.0-2.5Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 7m³/min
1.8Mpa 13m³/min
M50

M60

No. Descprition Part Number Weight(kg)
1 Top Sub 66510289 20
2 "O"Ring 66510290 0.01
3 Check Valve 66510291 0.56
4 Spring 66510292 0.06
5 Valve Seat 66510293 3.5
6 Inner Cylinder 66510294 3.9
7 Piston 66510295 21.5
8 Piston Case 66510296 30.5
9 Guided Sleeve 66510297 4.8
10 "O"Ring 66510298 0.01
11 Retainer Ring 66510299 0.9
12 "O"Ring 66510300 0.01
13 Drive Chuck 66510301 5.8
14 Drill Bit 66510302

Technical Data

1 Length(Less bit) 1129mm
2 Weight 91.5Kg
3 Outer Diameter ￠144mm
4 Connection Thread API 3 1/2"REG
5 Bit Shank M60
6 Hole Range ￠152- ￠203mm
7 Working Pressure 1.0-2.8Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 18m³/min
1.8Mpa 25m³/min
M60

M80

No. Descprition Part Number Weight(kg)
1 Top Sub 66510303 43
2 "O"Ring 66510304 0.01
3 Check Valve 66510305 0.46
4 Spring 66510306 0.07
5 Valve Seatt 66510307 0.65
6 "O"Ring 66510308 0.01
7 Lock Pin 66510309 0.3
8 "O"Ring 66510310 0.01
9 Rigid Valve 66510311 2
10 Nylon Plug 66510312 0.04
11 Piston 66510313 42
12 Piston Case 66510314 43
13 Guided Sleeve 66510315 9.8
14 Check Ring 66510316 0.9
15 Retainer Ring 66510317 1.9
16 "O"Ring 66510318 0.01
17 Drive Chuck 66510319 17
18 Drill Bit 66510320

Technical Data

1 Length(Less bit) 1333mm
2 Weight 160.5Kg
3 Outer Diameter ￠180mm
4 Connection Thread API 4 1/2"REG
5 Bit Shank M80
6 Hole Range ￠195- ￠245mm
7 Working Pressure 1.5-3.3Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.8Mpa 26m³/min
2.4Mpa 35m³/min
M80

QL40A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510138 8.10
2 "O"Ring 66510139 0.01
3 Check Valve 66510140 0.30
4 Spring 66510141 0.04
5 Valve Seat 66510142 1.50
6 Inner Cylinder 66510143 2.10
7 Piston 66510144 8.40
8 Piston Case 66510145 16.40
9 Guided Sleeve 66510146 2.30
10 Retainer Ring 66510147 0.27
11 "O"Ring 66510148 0.01
12 Driver Chuck 66510149 3.30
13 Drill Bit 66510150

Technical Data

1 Length(Less bit) 863mm
2 Weight 35Kg
3 Outer Diameter ￠100mm
4 Connection Thread API2 3/8"REG
5 Bit Shank QL40A
6 Hole Range ￠108- ￠135mm
7 Working Pressure 1.0- 1.9 Mpa
8 Recommended Rotation Speed 30-60 r/min
9 Air Consumption 1.0Mpa 5.5m³/min
1.8Mpa 9m³/min
QL40A

QL50

No. Descprition Part Number Weight(kg)
1 Top Sub 66510178 14.7
2 "O"Ring 66510179 0.02
3 Check Valve 66510180 1
4 Spring 66510181 0.06
5 Buffer 66510182 0.2
6 Valve Seat 66510183 4.1
7 Inner Cylinder 66510184 4.7
8 Piston 66510185 17
9 Piston Case 66510186 24.7
10 Guided Sleeve 66510187 1
11 Retainer Ring 66510188 0.6
12 "O"Ring 66510189 0.01
13 Drive Chuck 66510190 5.6
14 Drill Bit 66510191

Technical Data

1 Length(Less bit) 1154mm
2 Weight 73.5Kg
3 Outer Diameter ￠126mm
4 Connection Thread API2 3/8"REG
5 Bit Shank QL50
6 Hole Range ￠135- ￠155mm
7 Working Pressure 1.0-2.5 Mpa
8 Recommended Rotation Speed 30-60 r/min
9 Air Consumption 1.0Mpa 9m³/min
1.8Mpa 15m³/min
QL50

QL50A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510165 14
2 "O"Ring 66510166 0.01
3 Check Valve 66510167 0.6
4 Spring 66510168 0.06
5 Valve Seat 66510169 2.15
6 Inner Cylinder 66510170 3.3
7 Piston 66510171 15.5
8 Piston Case 66510172 24.2
9 Guided Sleeve 66510173 2.75
10 Retainer Ring 66510174 0.45
11 "O"Ring 66510175 0.01
12 Drive Chuck 66510176 5.4
13 Drill Bit 66510177

Technical Data

1 Length(Less bit) 1102mm
2 Weight 68.5Kg
3 Outer Diameter ￠126mm
4 Connection Thread API2 3/8"REG
5 Bit Shank QL50A
6 Hole Range ￠136- ￠155mm
7 Working Pressure 1.0-2.5 Mpa
8 Recommended Rotation Speed 30-60 r/min
9 Air Consumption 1.0Mpa 7m³/min
1.8Mpa 13m³/min
QL50A

QL60

No. Descprition Part Number Weight(kg)
1 Top Sub 66510207 23
2 "O"Ring 66510208 0.02
3 Check Valve 66510209 0.08
4 Spring 66510210 0.05
5 Rubber Buffer 66510211 0.3
6 Valve Seat 66510212 6.2
7 Inner Cylinder 66510213 5
8 Piston 66510214 23.5
9 Piston Case 66510215 39
10 Guided Sleeve 66510216 1.1
11 Retainer Ring 66510217 0.6
12 "O"Ring 66510218 0.02
13 Drive Chuck 66510219 6.3
14 Drill Bit 66510220

Technical Data

1 Length(Less bit) 1211mm
2 Weight 105Kg
3 Outer Diameter ￠148mm
4 Connection Thread API 3 1/2"REG
5 Bit Shank QL60
6 Hole Range ￠158- ￠190mm
7 Working Pressure 1.0-2.5 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.0Mpa 20m³/min
1.8Mpa 28m³/min
QL60

QL60A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510192 21.5
2 "O"Ring 66510193 0.01
3 Disc Spring 66510194 0.34
4 Check Valve 66510195 0.56
5 Spring 66510196 0.05
6 Valve Seat 66510197 4.3
7 Inner Cylinder 66510198 4.2
8 Piston 66510199 23
9 Piston Case 66510200 34.3
10 Guided Sleeve 66510201 5.4
11 Check Ring 66510202 0.02
12 Retainer Ring 66510203 0.92
13 "O"Ring 66510204 0.01
14 Drive Chuck 66510205 7.5
15 Drill Bit 66510206

Technical Data

1 Length(Less bit) 1155mm
2 Weight 102Kg
3 Outer Diameter ￠148mm
4 Connection Thread API3 1/2"REG
5 Bit Shank QL60A
6 Hole Range ￠158- ￠203mm
7 Working Pressure 1.2-2.7 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.8Mpa 16m³/min
2.4Mpa 23m³/min
QL60A

QL80

No. Descprition Part Number Weight(kg)
1 Top Sub 66510192 21.5
2 "O"Ring 66510193 0.01
3 Disc Spring 66510194 0.34
4 Check Valve 66510195 0.56
5 Spring 66510196 0.05
6 Valve Seat 66510197 4.3
7 Inner Cylinder 66510198 4.2
8 Piston 66510199 23
9 Piston Case 66510200 34.3
10 Guided Sleeve 66510201 5.4
11 Check Ring 66510202 0.02
12 Retainer Ring 66510203 0.92
13 "O"Ring 66510204 0.01
14 Drive Chuck 66510205 7.5
15 Drill Bit 66510206

Technical Data

1 Length(Less bit) 1155mm
2 Weight 102Kg
3 Outer Diameter ￠148mm
4 Connection Thread API3 1/2"REG
5 Bit Shank QL60A
6 Hole Range ￠158- ￠203mm
7 Working Pressure 1.2-2.7 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption 1.8Mpa 16m³/min
2.4Mpa 23m³/min
QL60A

QL80A

No. Descprition Part Number Weight(kg)
1 Top Sub 66510221 38.5
2 "O"Ring 66510222 0.02
3 Check Valve 66510223 0.65
4 Spring 66510224 0.1
5 Valve Seat 66510225 6.2
6 Inner Cylinder 66510226 7.4
7 Piston 66510227 44.5
8 Piston Case 66510228 64.5
9 Guided Sleeve 66510229 10.5
10 Retainer Ring 66510230 1.2
11 "O"Ring 66510231 0.01
12 Drive Chuck 66510232 14.5
13 Drill Bit 66510233

Technical Data

1 Length(Less bit) 1335mm
2 Weight 188Kg
3 Outer Diameter ￠185mm
4 Connection Thread API4 1/2"REG
5 Bit Shank QL80A
6 Hole Range ￠198- ￠254mm
7 Working Pressure 1.5-3.3 Mpa
8 Recommended Rotation Speed 30～60 r/min
9 Air Consumption   25m³/min
2.4Mpa 34m³/min
QL80A
  • Previous:
  • Next:
    • Write your message here and send it to us

    Related products

    • Roller Cone Bits Size 10 578″ IADC722 TCI Drill Tools Tricone Bits for Water Well Drilling

      Roller Cone Bits Size 10 578″ IADC722 TCI...

      See more products >
    • DRILL ROD

      DRILL ROD

      Box-Box Adapter Tube Part Number Adapter SizeA(mm) SizeB(mm) SizeC(mm) SizeD(mm) SizeE(mm) SizeF(mm) Wrench FlatG(mm) 66540001 ₵64 20 50 85 50 ₵64 1500 55 66540002 ₵76 (2 3/8REG) 25 50 100 50 ₵76 3000 57 66540003 ₵76 (2 3/8REG) 25 50 100 50 ₵76 3000 64 66540004 ₵89 (2 3/8IF) 30 50 125 50 ₵89 3000 65 6654000...

      See more products >
    • Normal Button Bits

      Normal Button Bits

      R25 Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg) Guage  No. X Size Center No. X Size 66520106 Flat Face 38 5x8 2x8 1 0.50 66520107 Flat Face 45 6x9 3x8 3 0.65 R32 Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg) Guage  No. X Size Center No. X Size 6652...

      See more products >
    • EPIROC drifter SC19 drilling tools

      EPIROC drifter SC19 drilling tools

      parameter Hole diameter 76 mm - 102 mm Power rating 19 kW Application For surface applications Input system Hydraulic

      See more products >
    • DTH Drilling Bits drilling tools

      DTH Drilling Bits drilling tools

      DHD3.5/DHD3.5A Part Number Head Shape Head Diameter(mm) Buttons Port Holes weight(kg) Guage  No. X Size Center No. X Size 66520001 Flat Face 90 6x14 5x12 2 4.70 66520002 Flat Face 95 6x14 5x12 2 4.80 66520003 Flat Face 100 6x14 6x12 2 4.90 66520004 Flat Face 108 8x13 6x12 2 5.40 DHD340A-DHD340 Part ...

      See more products >
    • Adapter Tube

      Adapter Tube

      Box-Box Adapter Tube Part Number Adapter Tube Model SizeA(mm) SizeB(mm) SizeC(mm) Wrench FlatD(mm) 66530011 2 3/8Box-2 3/8Box Adapter Tube 97 45 ₵89 70 66530012 2 3/8Box-2 7/8Box Adapter Tube 115 50 ₵102 85 66530013 2 3/8IF Box-3 1/2Box Adapter Tube 102 50 ₵114 95 66530014 2 7/8Box-3 1/2Box Adapter Tube 122 5...

      See more products >
    Hit enter to search or ESC to close
